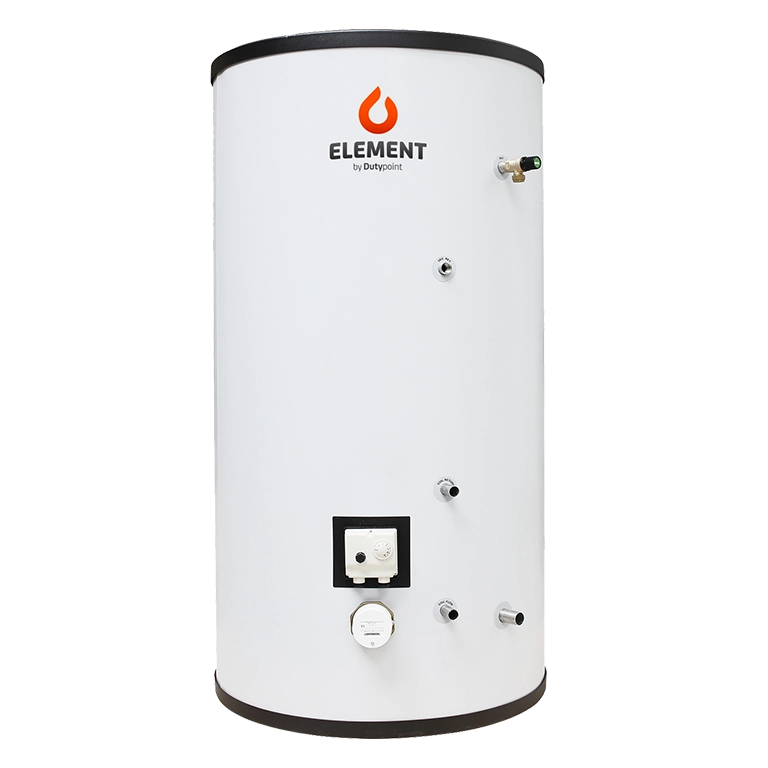

Element Hot Water Cylinders

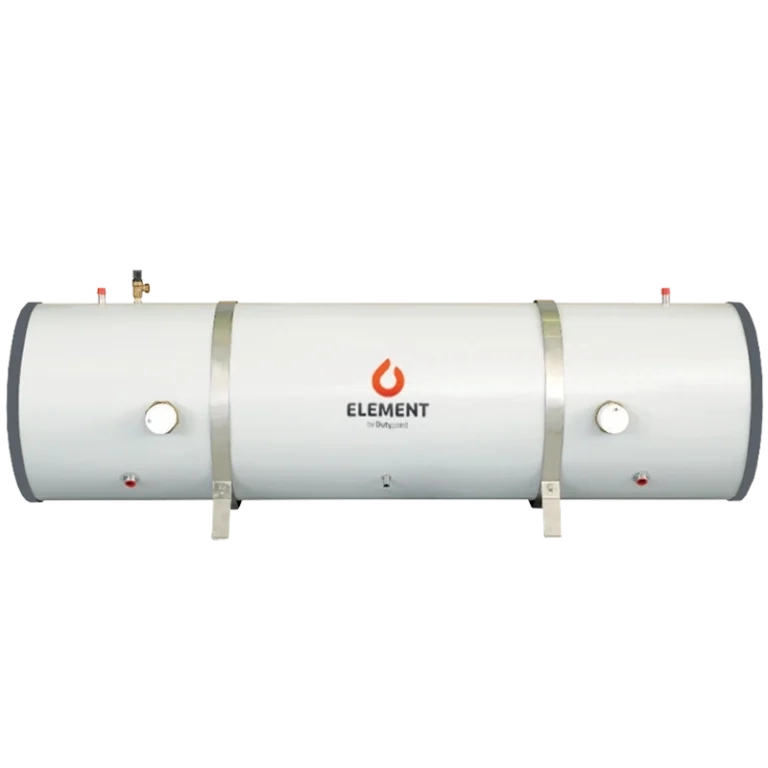

The Element hot water cylinders are designed to provide high performance and feature 28 mm inlet and outlet connections. Offering a wide range of capacities to meet the needs of multiple applications. These energy-efficient hot water cylinders feature high-performance insulation as standard to minimise heat loss and are available in horizontal and vertical configurations.
Manufactured using a plastisol casing and a duplex stainless steel construction to ensure high durability. These units are supplied with a range of safety features including a factory-fitted pressure and temperature relief valve. Approved to Building Standards: BS 853-1-1996 & BS-12-897 and Building Regulations: Part G & L.
Element Pro – The Element Pro range is designed for applications requiring rapid recovery, thanks to its enhanced primary coil and 6 kW immersion heater. This allows for reheat times as quick as seven minutes. Element Direct – For installations without an external heat source, the Element Direct range is equipped as standard with a 2 x 3 kW immersion heater. Element Solar – Ideal for renewable energy sources like solar panels, the Element Solar range features an additional secondary coil.
Product Features:
- WRAS approved for potable water applications
- Capacity: 80 – 500 litres
- 28 mm connections for high flow rates
- 4.5 bar and 6.0 bar options
- Building Standards: BS 853-1-1996 & BS-12-897 approved
- High-grade duplex stainless steel construction
